Junior Product Range
Junior Product Range
Solar/fuel-cell experimental stations, sets, and laboratories. Fuel-cells, fuel-cell stacks, electrolysers, solar arrays, power-supplies, accessories.
2086 Solar Module Basic
Specifications
Power: 2.0V 260mA
H x W x D: 63x83x3mm
Weight: 25g
A solar module for the HyRunner and the Junior electrolyser.
Specifications
Power: 2.0V 260mA
H x W x D: 63x83x3mm
Weight: 25g
A solar module for the HyRunner and the Junior electrolyser.
2021 Solar Module Junior
Specifications
Power: 2.0V 350mA
H x W x D: 65 x 150 x 60 mm
Weight: 125g
A single solar module on a base plate, to be used as an electrical supply for the HyRunner and the Junior electrolysers.
Specifications
Power: 2.0V 350mA
H x W x D: 65 x 150 x 60 mm
Weight: 125g
A single solar module on a base plate, to be used as an electrical supply for the HyRunner and the Junior electrolysers.
2030 Spotlight
Specifications
Power: 75W
H x W x D: 490x260x260mm
Weight: 3.4kg
A quartz-halogen lamp for using instead of the sun to operate the Solar Module Basic, the Solar Module Junior, the Solar Module Eco, the Junior Basic, the Eco H2/Air and the Eco H2/O2.
Specifications
Power: 75W
H x W x D: 490x260x260mm
Weight: 3.4kg
A quartz-halogen lamp for using instead of the sun to operate the Solar Module Basic, the Solar Module Junior, the Solar Module Eco, the Junior Basic, the Eco H2/Air and the Eco H2/O2.
2033 PowerSupply Junior
Specifications
Input: 100-240V, 50-60Hz
Output: 5.0VDC 1.2A
Weight: 90g
A power-supply for the HyRunner, HyRunner GT and Junior electrolysers.
Specifications
Input: 100-240V, 50-60Hz
Output: 5.0VDC 1.2A
Weight: 90g
A power-supply for the HyRunner, HyRunner GT and Junior electrolysers.

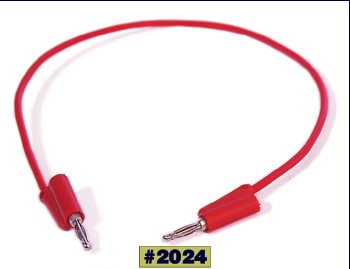

2024 Cable Red, Junior
2025 Cable Black, Junior
Specifications
Plug: 2mm
Length: 50cm
Red and black connector-cables for the HyRunner, HyRunner GT and Junior products.
2025 Cable Black, Junior
Specifications
Plug: 2mm
Length: 50cm
Red and black connector-cables for the HyRunner, HyRunner GT and Junior products.
2023 Decade Resistor, Junior
Specifications
Maximum capacity: 1W
Ports: 2mm
H x W x D: 40x160x130mm
Weight: 190g
A decade resistor for the HyRunner, HyRunner GT and Junior products.
Specifications
Maximum capacity: 1W
Ports: 2mm
H x W x D: 40x160x130mm
Weight: 190g
A decade resistor for the HyRunner, HyRunner GT and Junior products.
2027 Multimeter Junior
Specifications
Ports: 2 mm
H x W x D: 125x70x30mm
Weight: 140g
A digital multimeter for the HyRunner, HyRunner GT and Junior products.
Specifications
Ports: 2 mm
H x W x D: 125x70x30mm
Weight: 140g
A digital multimeter for the HyRunner, HyRunner GT and Junior products.
2085 Experimentation Kit Junior
Specifications
Decade Resistor:
Maximum capacity: 1W
Ports: 2mm
H x W x D: 40x160x130mm
Weight: 190g
Multimeter Junior:
Ports: 2mm
H x W x D: 125x70x30mm
Weight: 140g
An experimentation kit consisting of a Decade Resistor Junior, two Multimeters Junior, a stopwatch, and cables. Suitable for the HyRunner and HyRunner GT fuel-cell cars, as well as the Junior products.
Specifications
Decade Resistor:
Maximum capacity: 1W
Ports: 2mm
H x W x D: 40x160x130mm
Weight: 190g
Multimeter Junior:
Ports: 2mm
H x W x D: 125x70x30mm
Weight: 140g
An experimentation kit consisting of a Decade Resistor Junior, two Multimeters Junior, a stopwatch, and cables. Suitable for the HyRunner and HyRunner GT fuel-cell cars, as well as the Junior products.
1950 Fuel-cell Monitor
Specifications
Power: 0-10VDC 0-5A Pmax = 5W
Ports: 2 and 4 mm USB Cable: 180 cm A/B
H x W x D: 40x160x100mm Weight: 235g
An external transformer-card for measuring and recording the characteristics of h-tec's fuel-cells. Connected to a PC via a USB cable. The software allows you to plot voltage-current, power-
voltage, power-current & power-time characteristics. Recording can be done manually, automatically, at certain voltage or current points, or at MPP. Data can be recorded as an Excel file. Minimum system: a PC with Windows operating system Win98, ME, 2000, NT or XP, 100MB disk-space, Pentium 1, 100MHz+, USB port. Recommended: MS Excel (for individualised data-
plotting). Package includes card, USB cable, software, cables.
Specifications
Power: 0-10VDC 0-5A Pmax = 5W
Ports: 2 and 4 mm USB Cable: 180 cm A/B
H x W x D: 40x160x100mm Weight: 235g
An external transformer-card for measuring and recording the characteristics of h-tec's fuel-cells. Connected to a PC via a USB cable. The software allows you to plot voltage-current, power-
voltage, power-current & power-time characteristics. Recording can be done manually, automatically, at certain voltage or current points, or at MPP. Data can be recorded as an Excel file. Minimum system: a PC with Windows operating system Win98, ME, 2000, NT or XP, 100MB disk-space, Pentium 1, 100MHz+, USB port. Recommended: MS Excel (for individualised data-
plotting). Package includes card, USB cable, software, cables.
$400
Prices exclude GST, freight & packaging.
$640
$700
2 endplates $140
1 cell $60
2090-1 = $200
2090-2 = $255
2090-3 = $315
2090-4 = $375
2090-5 = $410
2090-6 = $490
2090-7 = $545
2090-8 = $605
2090-9 = $660
2090-10 = $720
1 cell $60
2090-1 = $200
2090-2 = $255
2090-3 = $315
2090-4 = $375
2090-5 = $410
2090-6 = $490
2090-7 = $545
2090-8 = $605
2090-9 = $660
2090-10 = $720
$60
$160
$200
$150
$220
$100
$110
$120
$58
$135
$24
$225
$995
2010 Junior Basic
Specifications
Electrolyser: 1W
Fuel-cell: 500mW
Gas storage: 20cm³ H2; 20cm³ O2
Solar module: 2.0V 350mA
Fan: 10mW
H x W x D: 200x300x150mm
Weight: 600g
A solar/hydrogen experimentation system made up of a solar module, a PEM electrolyser, hydrogen and oxygen storage tanks, a PEM fuel cell, and an electric load, all mounted on a black base plate. Textbook included.
Specifications
Electrolyser: 1W
Fuel-cell: 500mW
Gas storage: 20cm³ H2; 20cm³ O2
Solar module: 2.0V 350mA
Fan: 10mW
H x W x D: 200x300x150mm
Weight: 600g
A solar/hydrogen experimentation system made up of a solar module, a PEM electrolyser, hydrogen and oxygen storage tanks, a PEM fuel cell, and an electric load, all mounted on a black base plate. Textbook included.
$520
$95
$105
$180
$28
$60
$5.50ea
$50
2011 Junior Set
Specifications
Electrolyser: 1W
Fuel cell: 500mW
Gas storage: 20cm³ H2; 20cm³ O2
Solar Module: 2.0V 350 mA
Fan: 10mW
Cable: 50cm
H x W x D: 140x450x380mm Weight: 2.8 kg
A complete hydrogen system in a carrying case, made up of a Junior Basic solar-hydrogen system, a Decade Resistor Junior, two Digital Multimeters Junior, three red and three black Junior Cables, a stopwatch, 250ml distilled water. Textbook included.
Specifications
Electrolyser: 1W
Fuel cell: 500mW
Gas storage: 20cm³ H2; 20cm³ O2
Solar Module: 2.0V 350 mA
Fan: 10mW
Cable: 50cm
H x W x D: 140x450x380mm Weight: 2.8 kg
A complete hydrogen system in a carrying case, made up of a Junior Basic solar-hydrogen system, a Decade Resistor Junior, two Digital Multimeters Junior, three red and three black Junior Cables, a stopwatch, 250ml distilled water. Textbook included.
2070 Junior Lab
Specifications
Electrolyser: 1W Fuel cell: 500mW
Gas storage: 20cm³ H2; 20cm³ O2
Solar module: 2.0 V / 350 mA
Fan: 10mW Cable: 50cm
H x W x D: 140x450x380 mm Weight: 2.8 kg
A complete hydrogen system in a carrying case--a Junior PEM Electrolyser, a Junior PEM Fuel-cell H2/O2 Base-Plate, a Fan Junior, Decade Resistor Junior, two Digital Multimeters Junior, three red and three black connector cables, a stopwatch, 250ml of distilled water. Textbook included.
Specifications
Electrolyser: 1W Fuel cell: 500mW
Gas storage: 20cm³ H2; 20cm³ O2
Solar module: 2.0 V / 350 mA
Fan: 10mW Cable: 50cm
H x W x D: 140x450x380 mm Weight: 2.8 kg
A complete hydrogen system in a carrying case--a Junior PEM Electrolyser, a Junior PEM Fuel-cell H2/O2 Base-Plate, a Fan Junior, Decade Resistor Junior, two Digital Multimeters Junior, three red and three black connector cables, a stopwatch, 250ml of distilled water. Textbook included.
2090-X Junior Stack
Specifications
Power per cell: 200mW
Power (10 cells): 2W
H x W x D (10 cells): 60x175x70mm
Weight (10 cells): 430g
A fuel-cell stack, where you specify the number of cells--up to ten. Easy mounting and unmounting of cells. Your stack is delivered fully assembled. The recommended hydrogen supply is an Electrolyser StaXX2. When ordering, please replace the 'X' with the number of cells you want (maximum 10)--e.g., for a ten-cell stack specify '2090-10 / Power 2W'; for a two-cell stack, specify '2090-2 / Power 400mW.'
Specifications
Power per cell: 200mW
Power (10 cells): 2W
H x W x D (10 cells): 60x175x70mm
Weight (10 cells): 430g
A fuel-cell stack, where you specify the number of cells--up to ten. Easy mounting and unmounting of cells. Your stack is delivered fully assembled. The recommended hydrogen supply is an Electrolyser StaXX2. When ordering, please replace the 'X' with the number of cells you want (maximum 10)--e.g., for a ten-cell stack specify '2090-10 / Power 2W'; for a two-cell stack, specify '2090-2 / Power 400mW.'
2091 Single Cell for the Junior Stack
Specifications
Power: 200mW
H x W x D: 50x60x13mm
Weight: 31g
A single fuel-cell: an extension for the Junior Stack.
Specifications
Power: 200mW
H x W x D: 50x60x13mm
Weight: 31g
A single fuel-cell: an extension for the Junior Stack.
2034 Junior PEMRFC
Specifications
Electrolyser mode: 1W
Fuel-cell mode: 500mW
Gas storage: 20cm³ H2; 20cm³ O2
H x W x D: 126x92x70mm
Weight: 172g
A hydrogen fuel-cell system with a reversible PEM fuel cell and two gas-storage tanks, all mounted on a black base-plate, for producing, storing, and using hydrogen and oxygen. Textbook included.
Specifications
Electrolyser mode: 1W
Fuel-cell mode: 500mW
Gas storage: 20cm³ H2; 20cm³ O2
H x W x D: 126x92x70mm
Weight: 172g
A hydrogen fuel-cell system with a reversible PEM fuel cell and two gas-storage tanks, all mounted on a black base-plate, for producing, storing, and using hydrogen and oxygen. Textbook included.

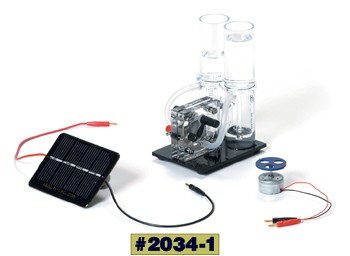

2034-1 Junior PEMRFC Set
Specifications
Electrolyser mode: 1W
Fuel cell mode: 500mW
Gas storage: 20cm³ H2; 20cm³ O2
Solar module: 2.0V 260mA
H x W x D: 126x92x70mm
Weight: 230g
A complete solar-hydrogen system, with a reversible PEM fuel-
cell and two gas-storage tanks, all mounted on a black base-
plate, for producing, storing and using hydrogen and oxygen; plus a demonstration motor and a Solar Module Basic. Textbook included.
Specifications
Electrolyser mode: 1W
Fuel cell mode: 500mW
Gas storage: 20cm³ H2; 20cm³ O2
Solar module: 2.0V 260mA
H x W x D: 126x92x70mm
Weight: 230g
A complete solar-hydrogen system, with a reversible PEM fuel-
cell and two gas-storage tanks, all mounted on a black base-
plate, for producing, storing and using hydrogen and oxygen; plus a demonstration motor and a Solar Module Basic. Textbook included.
2014 Junior Electrolyser
Specifications
Power: 1W
Gas storage: 20cm³ H2; 20cm³ O2
Hydrogen production: 4.3cm³/min
Oxygen production: 2.2cm³/min
H x W x D: 200x120x90mm
Weight: 260g
A PEM electrolyser for hydrogen and oxygen production, with water tanks and gas storage tanks, all mounted on a black base-plate.
Specifications
Power: 1W
Gas storage: 20cm³ H2; 20cm³ O2
Hydrogen production: 4.3cm³/min
Oxygen production: 2.2cm³/min
H x W x D: 200x120x90mm
Weight: 260g
A PEM electrolyser for hydrogen and oxygen production, with water tanks and gas storage tanks, all mounted on a black base-plate.
2029 Electrolyser Basic
Specifications
Power: 1W
H x W x D: 70x90x70mm
Weight: 108g
A compact electrolyser for hydrogen production for the Mini Fuel-cell, the Junior Fuel-cell Car, and the Fuel-cell Junior H2/Air.
Specifications
Power: 1W
H x W x D: 70x90x70mm
Weight: 108g
A compact electrolyser for hydrogen production for the Mini Fuel-cell, the Junior Fuel-cell Car, and the Fuel-cell Junior H2/Air.
2112 Fuel-cell Junior H2/Air
Specifications
Power: 150mW
H x W x D: 50x50x40mm
Weight: 60g
A PEM fuel-cell that operates on hydrogen and air (it uses oxygen from the air instead of being supplied with pure oxygen from an electrolyser).
Specifications
Power: 150mW
H x W x D: 50x50x40mm
Weight: 60g
A PEM fuel-cell that operates on hydrogen and air (it uses oxygen from the air instead of being supplied with pure oxygen from an electrolyser).
2012 Fuel-cell Junior H2/Air Base-Plate
Specifications
Power: 150mW
H x W x D: 60x120x90mm
Weight: 100g
A PEM fuel-cell mounted on a black base-plate that operates on hydrogen and air (it takes oxygen from the air instead of being supplied with pure oxygen from an electrolyser).
Specifications
Power: 150mW
H x W x D: 60x120x90mm
Weight: 100g
A PEM fuel-cell mounted on a black base-plate that operates on hydrogen and air (it takes oxygen from the air instead of being supplied with pure oxygen from an electrolyser).
2113 Fuel-cell Junior H2/O2
Specifications
Power: 500mW
H x W x D: 50x50x40mm
Weight: 60g
A PEM fuel-cell that operates on hydrogen and pure oxygen (which is why it develops more power than the H2/Air model).
Specifications
Power: 500mW
H x W x D: 50x50x40mm
Weight: 60g
A PEM fuel-cell that operates on hydrogen and pure oxygen (which is why it develops more power than the H2/Air model).
2013 Fuel-cell Junior H2/O2 Base-Plate
Specifications
Power: 500mW
H x W x D: 60x120x90mm
Weight: 100g
A PEM fuel cell that operates on hydrogen and pure oxygen from an electrolyser (which is why it develops more power than the H2/Air model), mounted on a black base plate.
Specifications
Power: 500mW
H x W x D: 60x120x90mm
Weight: 100g
A PEM fuel cell that operates on hydrogen and pure oxygen from an electrolyser (which is why it develops more power than the H2/Air model), mounted on a black base plate.
2117 Fuel-cell Car Junior
Specifications
Power: 150mW
H x W x D: 90x200x64mm
Weight: 190g
A desktop model car, powered by a Fuel-cell Junior H2/Air.
Specifications
Power: 150mW
H x W x D: 90x200x64mm
Weight: 190g
A desktop model car, powered by a Fuel-cell Junior H2/Air.

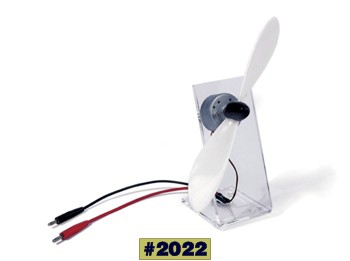

2022 Fan Junior
Specifications
Power: 10mW
HxWxD: 140x60x40
Weight: 45g
An electric fan, to be used as a load for the Junior Fuel-cell.
Specifications
Power: 10mW
HxWxD: 140x60x40
Weight: 45g
An electric fan, to be used as a load for the Junior Fuel-cell.
3011 Electrolyser StaXX 2
Specifications
Power: 15W 0-5A Pmax = 5W
Hydrogen production: 65cm³/min.
H x W x D: 140x180x120mm
Weight: 460g
Two-cell PEM electrolyser stack for producing hydrogen from distilled water.
Specifications
Power: 15W 0-5A Pmax = 5W
Hydrogen production: 65cm³/min.
H x W x D: 140x180x120mm
Weight: 460g
Two-cell PEM electrolyser stack for producing hydrogen from distilled water.
Please allow 28 days for delivery
